Hazardous Location Lighting 180Min Emergency Battery Back Edge Lit Et Fixture Two Side EXIT logo Class I Division I
$938.00$1,250.00 (-25%)
- Wattage: 5W
- Item:YB-EX-5W JNGD180
- Series: J
- Input Voltage: 100-277v
- Hazardous Location: Class 1 Divission 1
- Emergency Operation: 3 hours
- Fixture Finish: Grey
- IP Grade: IP66
- Base Material:Die-cast Aluminum
- Hardware:Stainless Steel
- Warranty: 5 Years
- CRI:＞70
- Dimmable: No
- Beam Angle:120°
- Safety Rating:UL 844 Hazardous Locations
- Wet Location Listed:Yes
- Mounting (Standard):Wall
Payments:
Categories: Exit Lights, Hazardous Location High Bay Lights R, Hazardous Location Lights
Tag: Hazardous Location Lighting
Description
Hazardous Location Lighting 180Min Emergency Battery Back Edge Lit Et Fixture Two Side EXIT logo Class I Division I
Illuminate your hazardous areas safely with the Yesbulb EX-5W JCIDI, an explosion-proof LED emergency edge-lit exit sign designed for environments that require robust and reliable safety lighting. This Class I Division I certified fixture ensures maximum safety and functionality with its extended emergency operation and versatile installation options.
Key Features:
- Extended Emergency Operation: Up to 3 hours of reliable lighting during power outages to ensure safety and visibility.
- Customizable Exit Legends: Tailor the signage to meet specific needs with multiple language options and customizable legends.
- Efficient Design: Features an edge-lit design for enhanced visibility and low energy consumption with a lifespan of up to 50,000 hours.
- Robust Construction: Built with A356T6 aluminum housing finished with gray epoxy, stainless steel hardware, and a tempered glass exit sign plate for maximum durability.
- High IP Rating: IP66 rated for exceptional protection against dust and water ingress, suitable for demanding industrial environments.

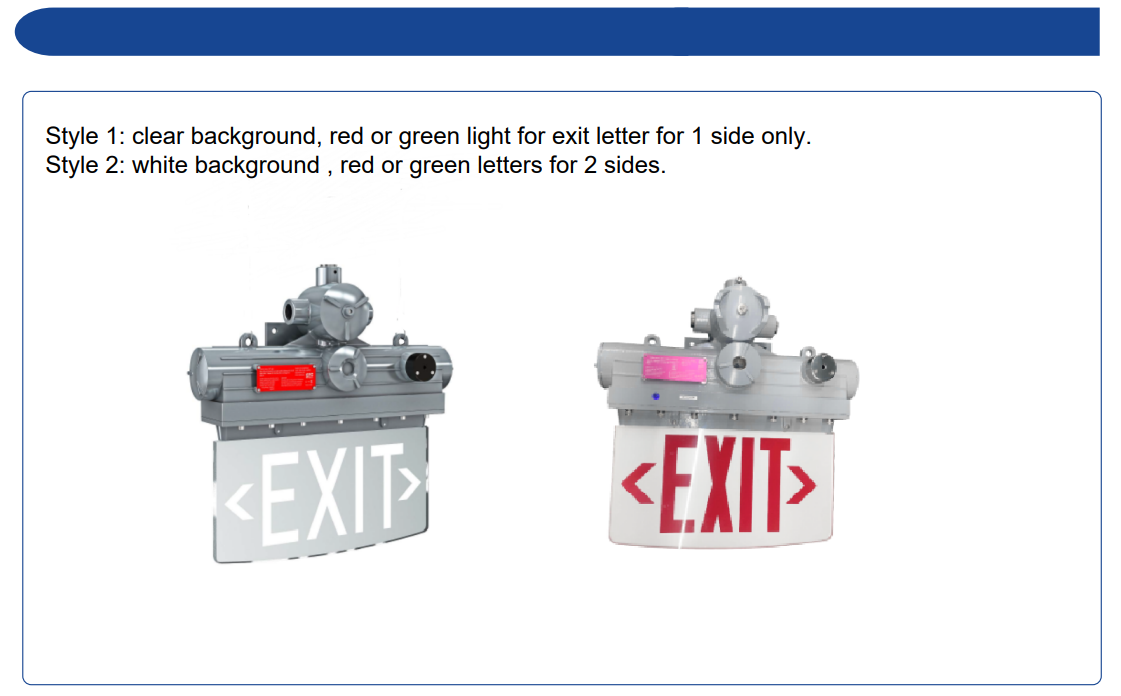

- Dual Mode Operation:
- Model 1: Keeps the EXIT sign illuminated at all times, regardless of mains electricity status.
- Model 2: Activates the EXIT sign only during power outages, conserving energy when mains power is available.
Installation Flexibility:
Easily installable with either 3/4″ NPT or M25 conduit hubs to accommodate various industrial setups.
Safety and Compliance:
Meets stringent safety standards required for hazardous locations, ensuring peace of mind and compliance with industry regulations.
Switch Functions and Indicators:
- Simple Control: Single-press switch activation with an indicator light flash sequence for easy operation.
- Automated Inspections: Features automated monthly and annual inspections signaled by distinct flash sequences to maintain functionality and safety standards.
- Charging Indicators: Includes multiple indicator lights to display charging status and battery capacity, ensuring readiness and operational integrity.
Specifications:
- Input Voltage: Universal 100-277VAC
- Wattage Options: 5 Watt
- Emergency Operation Time: 3 hours
- Temperature Tolerance: Operates within 14°F to +140°F (-10°C to +60°C)
- Warranty: 5-year limited warranty
Ideal for use in the oil and gas industry, chemical plants, metal treatment facilities, and other high-risk areas, the Venas EX-5W JCIDI ensures that safety never goes dark. Its reliable, efficient, and durable design makes it an essential fixture in any hazardous environment.

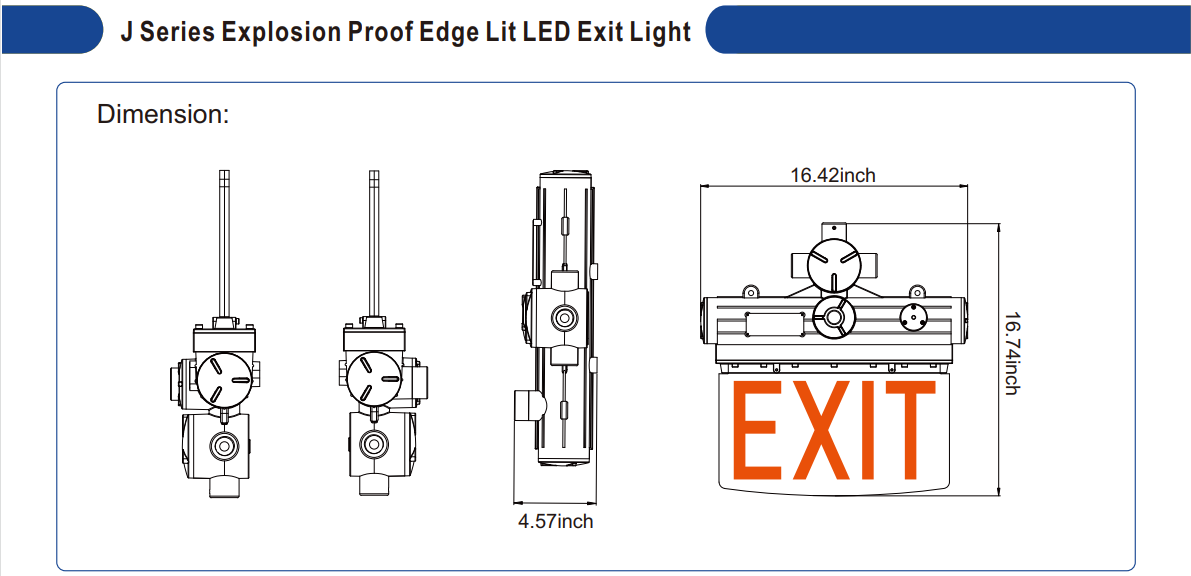

Product Size:
Certifications
●UL Listed to US and Canadian Standards.
●Suitable for use in hazardous locations.
Note
●Actual performance may differ as a result of end-user
environment and application.All values are design or
typical values, measured under laboratory conditions at
25°℃(±5°C) specifications subject to change without notice.
Rating and Certificates
- Class l,Division ll,
- Class ll,Division I,
Materials:
Housing : Die-Casting Aluminum
Diffuser: Tempered glass
Bolts: Stainless Steel
Mounting Braket: Stainless steel
Widely Applications
Applications:
Ideal for use in:
Marine environments and coastal areas
Industrial settings with hazardous materials
Areas with high exposure to moisture and dust
Locations requiring durable and reliable lighting solutions
This jelly jar explosion-proof flood light is perfect for industries and facilities where safety and lighting performance must meet the highest standards. Its robust structure, combined with versatile mounting options and efficient cooling, makes it an excellent choice for a wide range of demanding applications.
INSTALLATION
Why Choose Yesbulb
[A factory Direct Outlet] Yesbulb leading commercial LED lighting supplier & manufacturer & factory, we supply and customize a variety of commercial LED lighting fixtures. We have over 13 years of commercial lighting R&D experience, 50+ LED lights patents, 200+ LED lights certifications, support OEM & ODM.
[Higher Quality with Lower Price] Yesbulb, a leading commercial LED lighting supplier and manufacturer and factory. We have over 13 years of commercial lighting R&D experience, 50+ LED lamp patents, 200+ LED lamp certification. Factory wholesale price.
[2-3 Days Delivery] shipping within 24 hours. Yesbulb also has a local warehouse in California, USA, providing more convenient and fast transportation services for Customers in the United States.
[Electricity Bills and Energy Saving] High-performance high-tech radiator aluminum shell, better heat dissipation to ensure longer life and safety of commercial lighting. best-in-class quality and energy efficiency, replacing existing conventional luminaires, reducing electricity bills by up to 75%, eliminating the need for frequent lamp replacement and lasting more than 50,000 hours.
[3-10 years warranty] We offer a 3-10 years warranty to ensure 100% customer satisfaction. if you have any questions, please feel free to contact us. (Exchangeable or refundable).
FAQs
Q1. Can I have a sample order for this Hazardous Location Light? How to order samples?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Send inquiry at contact page, we will contact you and send you quotation.
Q2.What’s your payment term? Can you accept the Credit Card?
A2: We accept payment Western Union / PayPal / Visa. We accept payment by credit card.
Q3. What about the lead time?
A3: Sample needs 1-5 days, mass production time needs 1-2 weeks for order quantity more than 8000pcs.
Q4. Do you have any MOQ limit for this Hazardous Location Light order?
A4: Low MOQ, 1pc for sample checking is available.
Q5. How do you ship the goods and how long does it take to arrive?
A5: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. How to proceed an order for this Hazardous Location Light?
A6: Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and places deposit for formal orders. Fourthly, We arrange the production.
Q7: Do you offer guarantee for the Hazardous Location Light?
A7: Yes, we offer 3-5 years warranty to our products.
| Wattage | 5W |
|---|---|
| Light Source | LED |
| Beam Angle | 120 degree |
| Input Voltage | AC100-277V |
| Color Temperature | 5000K |
| Emergency Operation: | 3 HOURS |
| Dimmable | NO |
| Material | Die Cast Aluminum |
| Certification | ETL UL, C1D1 |
| CRI | 70 |
| PF | 0.92 |
| Fixture Finish: | Grey |
| IP Rating | IP66 |
| Warranty | 5 Years |
