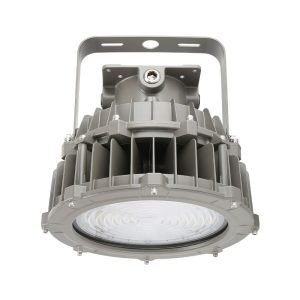

Explosion Proof Led Light Fixture 200W 31500 Lumens AC120-277V 5000K IP66 C1D2 ETL UL Listed
$375.00$413.00 (-9%)
- Wattage: 150W
- Item YB-M-EX-200W 50K120D
- Beam Angle: 120°
- Input Voltage: AC100-277V
- Hazardous Location: Class 1 Divission 2, C2D1
- Surge Protection:10kv
- Standard cord/wire Length: 2ft
- IP Grade: IP66
- Color Temperature: 5000K
- Lumens: 31500lm
- Warranty: 5 Years
Views: 18
What are the advantages of Explosion Proof Led Light Fixture 200W 31500 Lumens AC120-277V 5000K IP66 C1D2 ETL UL Listed?
SPECIFICATION FEATURES
Construction
●Robust cast aluminum housing with low copper content with
stands harsh or hostile environments.
Precise number of fins dissipate maximum amount of heat.
Rugged construction ensures long-life and safe operation.
Resistant to shock and vibration.
Optics
●Three distributions available to maximize versatility:60°,90°,120°.
Scalable Lumen Packages from 10,000 to 30,000 Lumens.
Lenses made of pc will not discolor or shatter, chip or break.
Highly engineered LED system ensures superior uniformity and
maximizes spacing.
●Optics is precisely designed to shape the distribution,maximizing
eficiency and application spacing.
LED Module
●Single CCT 3000K, 4000K,5000K,5700K are available for standard version.
Electrical
●Universal 120-277 VAC or 347-480 VAC input voltage.
0-10V/PWM/Rx 3-in-1 Dimming
●Both drivers have a power factor >90%, THD <20%.
Operating Temperature Range:-40℃-+65℃
Built in standard surgeprotection with 6KV, with optional separate surge
protection:20KV(120-277V),and 40KV(347-480V).
Installation
●Wall mount (option)
●Trunnion mount (default)
Pendant mount (option)
Round pole mount (option)
●Ceiling mount (option)
Lifespan
●Estimated 50,000-hour LED lifespan based on IES LM-80
results and TM-21calculations.
Finish
lt’s available in black or optional gray, silver gray or white.
Warranty
●Five-year limited warranty.
Certifications
●UL Listed to US and Canadian Standards.
●Suitable for use in hazardous locations.
Note
●Actual performance may differ as a result of end-user
environment and application.All values are design or
typical values, measured under laboratory conditions at
25°℃(±5°C) specifications subject to change without notice.
Rating and Certificates
- Class l,Division ll,
- Class ll,Division I,
Materials:
Housing : Die-Casting Aluminum
Diffuser: Tempered glass
Bolts: Stainless Steel
Mounting Braket: Stainless steel
Size information:
Widely Applications
This luminaire can be used as flood light, wall pack and area light which can provide general illumination in hazardous locations, such as: Oil refineries and Gas station, Oil and gasoline loading dock, Distilleries, Painting manufacturing plant, Pumping station, Mine, and Other high humility, high temperature, dusty location.
Oil and Gas industry
All petroleum production and refining
Petroleum loading and transportation
Petroleum storage and retail
LNG industry
All mining operations and service
Chemical industry
All types of painting facilities
Chemical production and storage
Ocean, marine and aerospace field
Ocean platform operation facilities and structure
Aerospace clean room and production
Ocean vessel operations
Metal treatment
Steel and aluminum factories
Pumping stations in any environment
Metal smelting, foundry and manufacturing
Food and alcohol industry
Flour and fine particle production and storage
Food and distilling production
Alcohol industry
Other high humidity, dust, high temperature, vapor locations
INSTALLATION
Why Choose Yesbulb
[A factory Direct Outlet] Yesbulb leading commercial LED lighting supplier & manufacturer & factory, we supply and customize a variety of commercial LED lighting fixtures. We have over 13 years of commercial lighting R&D experience, 50+ LED lights patents, 200+ LED lights certifications, support OEM & ODM.
[Higher Quality with Lower Price] Yesbulb, a leading commercial LED lighting supplier and manufacturer and factory. We have over 13 years of commercial lighting R&D experience, 50+ LED lamp patents, 200+ LED lamp certification. Factory wholesale price.
[2-3 Days Delivery] shipping within 24 hours. Yesbulb also has a local warehouse in California, USA, providing more convenient and fast transportation services for Customers in the United States.
[Electricity Bills and Energy Saving] High-performance high-tech radiator aluminum shell, better heat dissipation to ensure longer life and safety of commercial lighting. best-in-class quality and energy efficiency, replacing existing conventional luminaires, reducing electricity bills by up to 75%, eliminating the need for frequent lamp replacement and lasting more than 50,000 hours.
[3-10 years warranty] We offer a 3-10 years warranty to ensure 100% customer satisfaction. if you have any questions, please feel free to contact us. (Exchangeable or refundable).
FAQs
Q1. Can I have a sample order for this Hazardous Location Light? How to order samples?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Send inquiry at contact page, we will contact you and send you quotation.
Q2.What’s your payment term? Can you accept the Credit Card?
A2: We accept payment Western Union / PayPal / Visa. We accept payment by credit card.
Q3. What about the lead time?
A3: Sample needs 1-5 days, mass production time needs 1-2 weeks for order quantity more than 8000pcs.
Q4. Do you have any MOQ limit for this Hazardous Location Light order?
A4: Low MOQ, 1pc for sample checking is available.
Q5. How do you ship the goods and how long does it take to arrive?
A5: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. How to proceed an order for this Hazardous Location Light?
A6: Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and places deposit for formal orders. Fourthly, We arrange the production.
Q7: Do you offer guarantee for the Hazardous Location Light?
A7: Yes, we offer 3-5 years warranty to our products.
Wattage | 200w |
---|---|
Light Source | LED |
Beam Angle | 120 degree |
Input Voltage | AC100-277V |
Color Temperature | 5000K |
Lumen | 31500lm |
Dimmable | NO |
Material | Die Cast Aluminum |
Certification | ETL UL |
CRI | 70 |
PF | 0.92 |
Life Time | 50,000 Hours |
IP Rating | IP66 |
Warranty | 5 Years |
